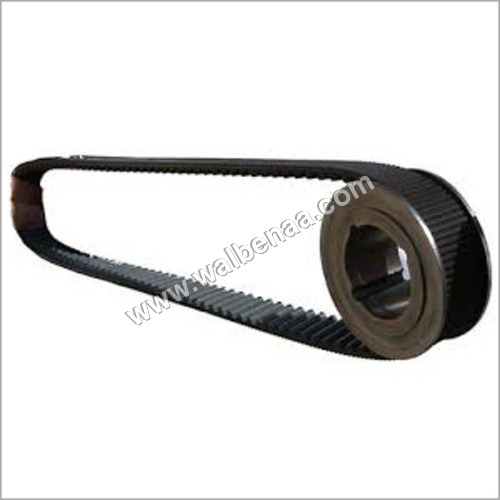

Transmission Belts

Transmission Belts
Transmission Belts
Product Code : TB 02
Brand Name : WARDAT AL BENAA TRADING
Product Description

Transmission Belts

We have gained recognition as an eminent enterprise, devotedly engaged in offering a broad range of Transmission Belts. Backed by a team of experts, these belts are manufactured using high quality raw material and latest technology. Our offered belts are used in varied industrial machines for transferring mechanical transmission. Furthermore, these belts are available in different specifications, as per the varied requirements of our valuable clients. These Transmission Belts are also stringently tested on various parameters to assure their quality.

Products Features:

  • Superior adhesion levels
  • Our Product Having High Competitive Capability Neoprene
  • High Tensile Strength Fiberglass Belt Or Other Cord
  • Offered Transmission Belts With High Tensile Strength Cover Fabric
  • Long Service Life
  • High Strength,Heat, Aging, Anti Oil
  • Good Bending Resistant Performance
  • Temperature resistance
  • Accurate dimension
  • Light weight

Products Specification:

T Type synchronous belt(mm)

Type Pitch Tooth height Belt thickness Angle
MXL 2.032 0.51 1.14 40
XXL 3.175 0.76 1.52 50
XL 5.08 1.27 2.3 50
L 9.525 1.91 3.6 40
H 2.7 2.29 4.3 40
XH 22.225 6.35 11.2 40
XXH 31.75 9.53 15.7 40
T2.5 2.5 0.7 1.3 40
T5 5 1.2 2.2 40
T10 10 2.5 4.5 40
T20 20 5 8 40
AT5 5 1.2 2.7 50
AT10 10 2.5 5 50
AT20 20 5 8 50



Arc tooth synchronous belt(mm)

Gear Code Type Pitch Tooth Height Belt Thickness
HTD 2M 2 0.75 1.36
3M 3 1.17 2.4
5M 5 2.06 3.8
8M 8 3.36 6
14M 14 6.02 10
20M 20 8.4 13.2
STD S2M 2 0.76 1.36
S3M 3 1.14 2.2
S4.5M 4.5 1.71 2.81
S5M 5 1.91 3.4
S8M 8 3.05 5.3
S14M 14 5.3 10.2
RPP/HPPD RP2M 2 0.76 1.36
RP3M 3 1.15 1.9
RP5M 5 1.95 3.5
RP8M 8 3.2 5.5
RP14M 14 6 10



Double Sided Timing Belt(mm)

Type W T
D-MXL 0.508 1.53
D-XL 0.508 3.05
D-L 0.762 4.56
D-H 1.372 5.95
D-XH 2.794 15.49
D-XXH 3.048 22.11
D-T2.5 0.6 2
D-T5 1 3.4
D-T10 2 7
D-T20 3 13
D-AT10 2 7
HTD.DA-3M 0.76 3.1
HTD.DA-5M 1.143 5.26
HTD.DA-8M 1.372 8.17
HTD.DA-14M 2.8 14.84
HTD.DA-S8M 1.372 7.48
